Alpha/Alpha S Assembly Instructions

1. Handlebars

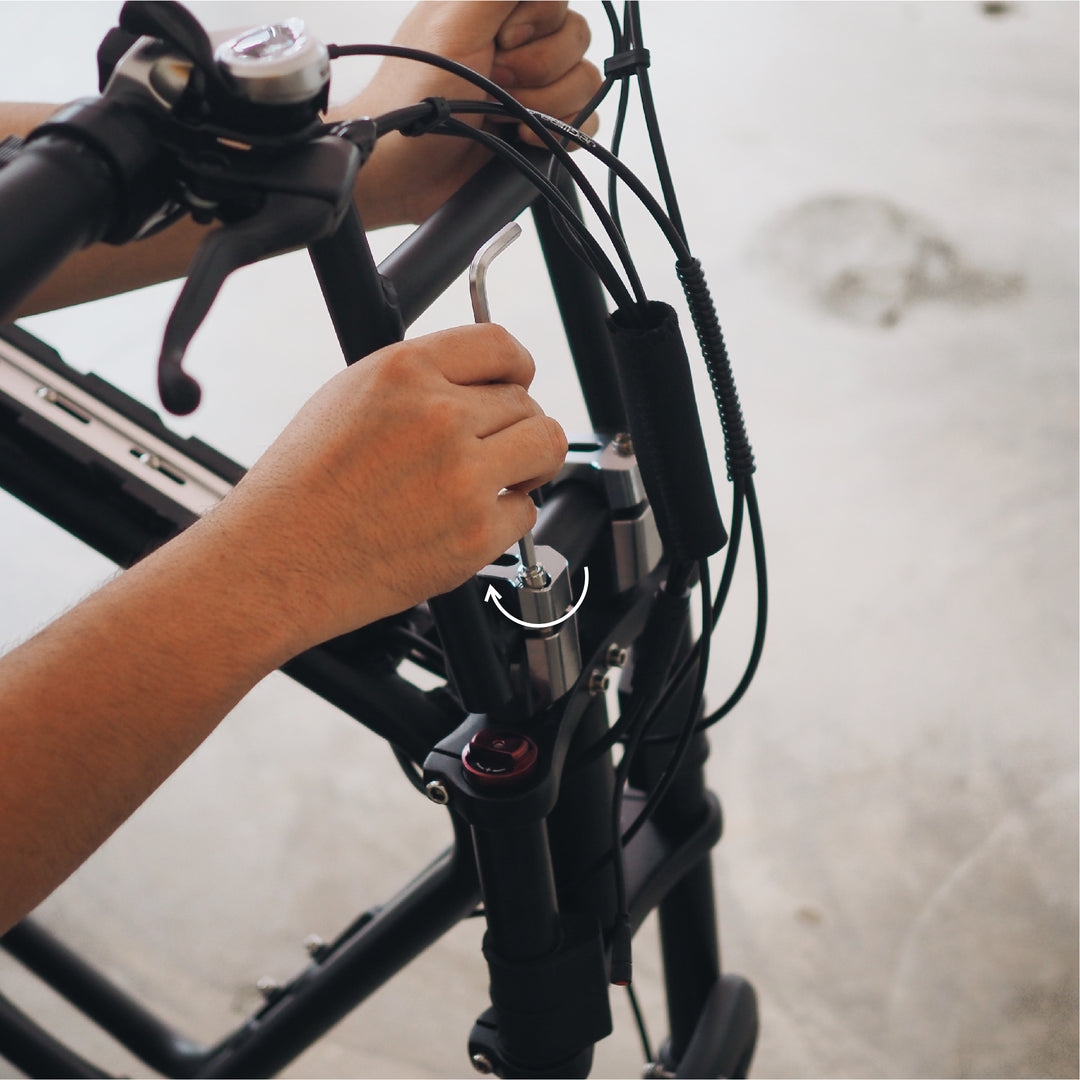

Use hex wrench to remove the bolts of the handlebar clamp.

Once the clamp is open, place the lower crossbar of the handlebar in the groove of the top crown.

Loosely tighten the handlebar clamp, and adjust the angle of the handlebar to riders comfort.

Tighten the handlebar clamp making sure the clamp is tightly secured, and handlebars do not move.

2. Front Wheel

Remove the shipping spacer, bolt and nut from the front wheel fork.

Insert the front wheel in between the forks while positioning the front brake disc in the brake caliper.The disk rotors are sharo, take precaution while working with or close to them.

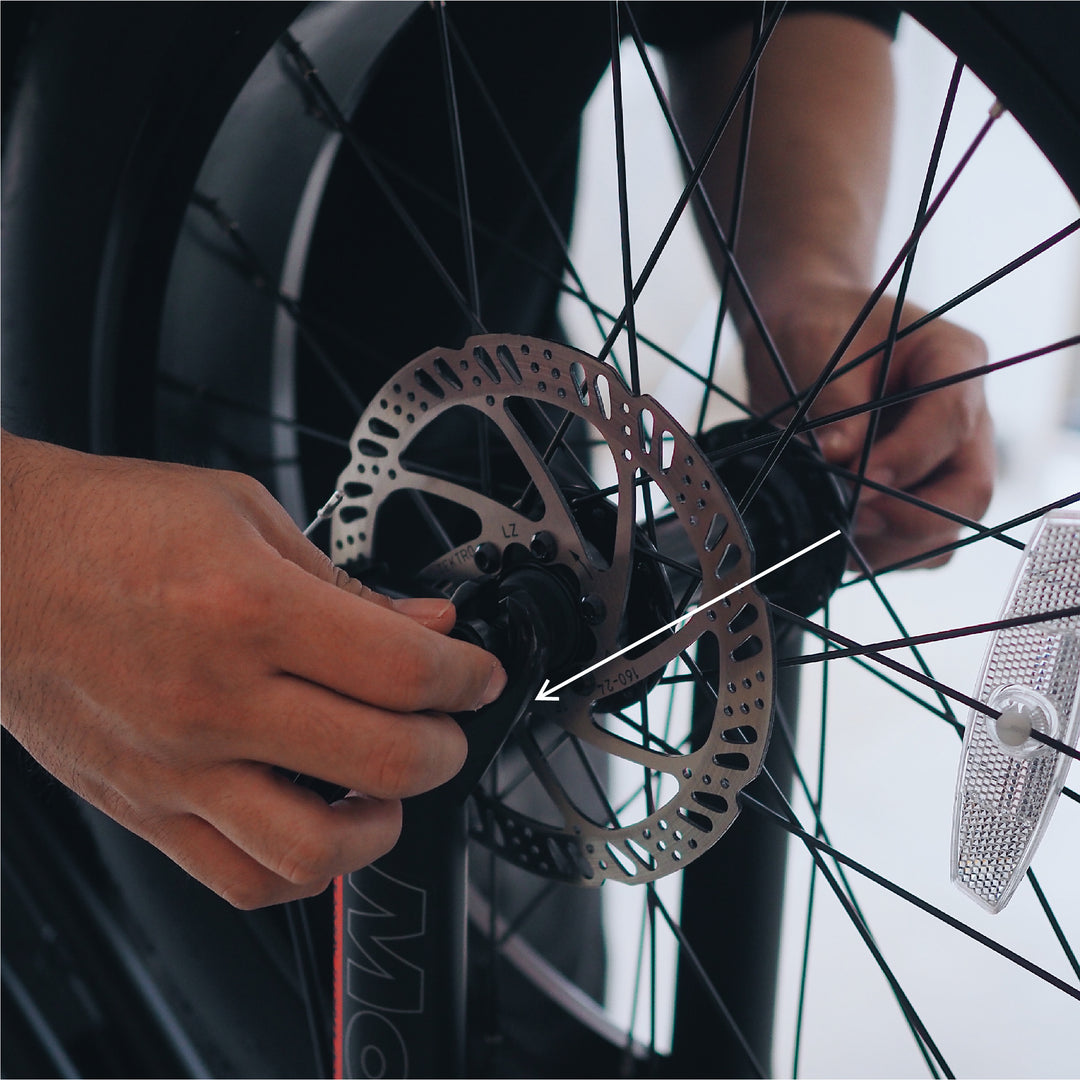

Insert the skewer into the wheel axle as shown. Keep the
spring, cam follower, and lever on the LEFT side, nearest
the disk brake. Keep the adjustment nut and spring on the
right side.

Screw the skewer into the end nut until almost tight.
Lift the lever up and lock into place by closing it behind or
to the front of the fork. The lever must not be parallel to
the fork. You should feel the axle tighten into the front
forks. Your front wheel is now installed.
Be sure to inspect that your front wheel is secured properly
before every ride and adjust if necessary.

3. Mud Guard

Place mud guard below lower crossbar of the front fork.

Insert and secure bolt with hex wrench. Bolt must be very tight to prevent rattling.

4. Pedals

identify the left and right markings on the pedals. Be sure to install the pedals on their respective side. L and R indicators are located on the underside of pedals.

(left pedal tighten counter-clockwise to install)

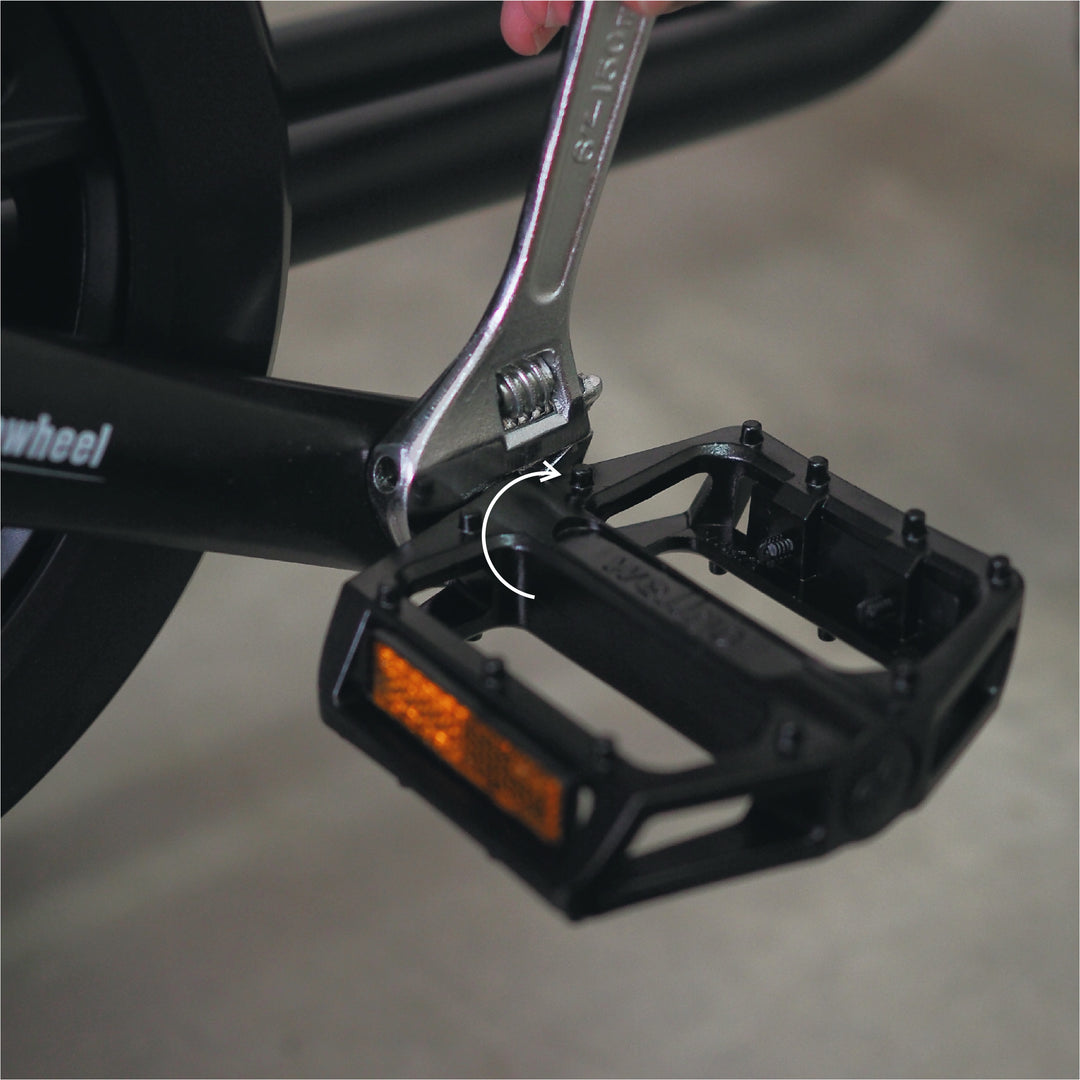

While keeping the pedal horizontal, carefully hand-start the threads of the pedal into the crank arm.

Finish tightening the pedals using the supplied 15 mm wrench. The pedals must be very tight. Check and retighten the pedals after your first two rides.

5. Headlight

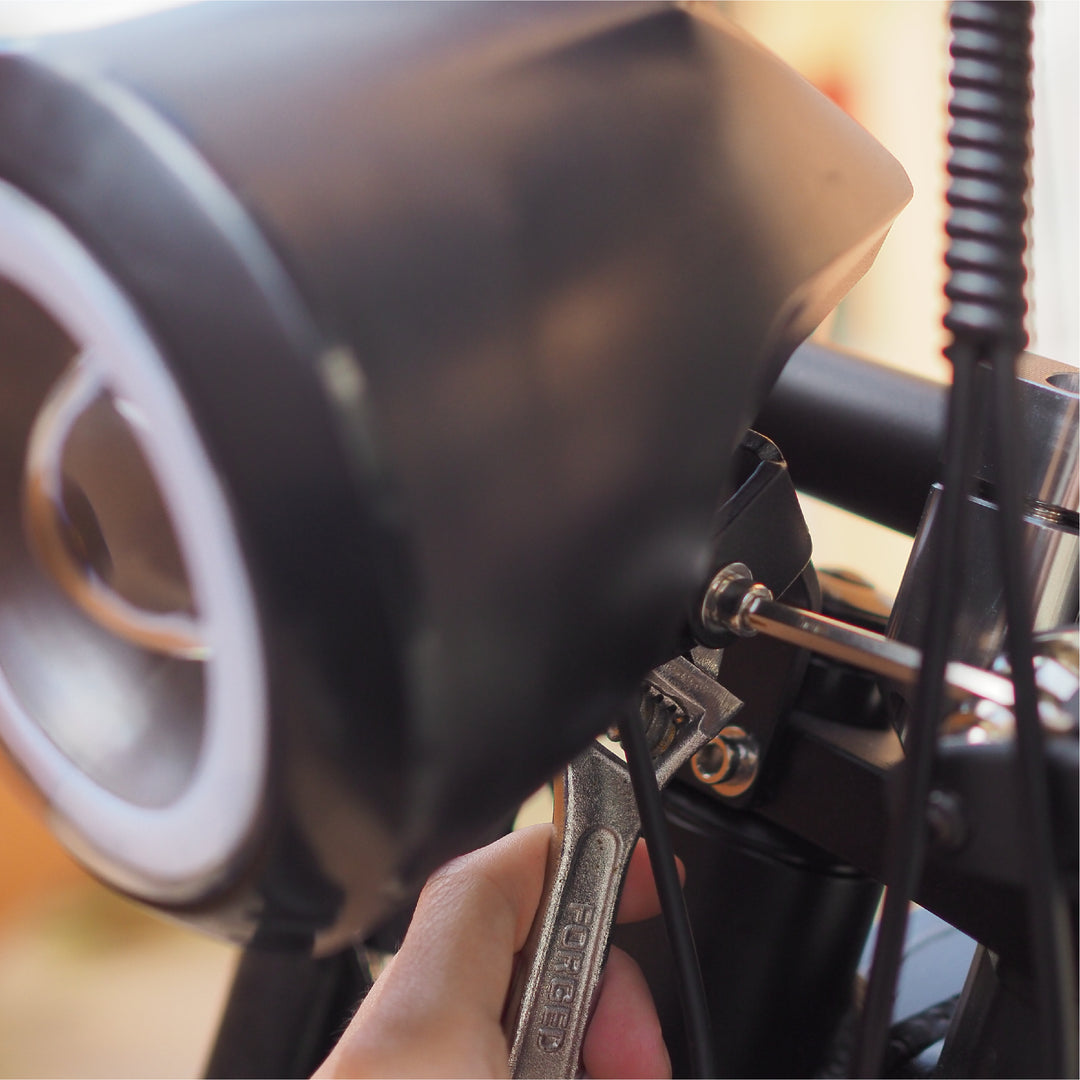

Locate the headlight mounting screws, remove the mounting screws from the crown, and set aside.

Align the headlight mounting bracket with the two holes on the top fork crown, and loosely tighten the mounting screws back in place.

Using a 5mm hex wrench, tighten the mounting screws in place to secure the headlight to the crown.

6. Connect

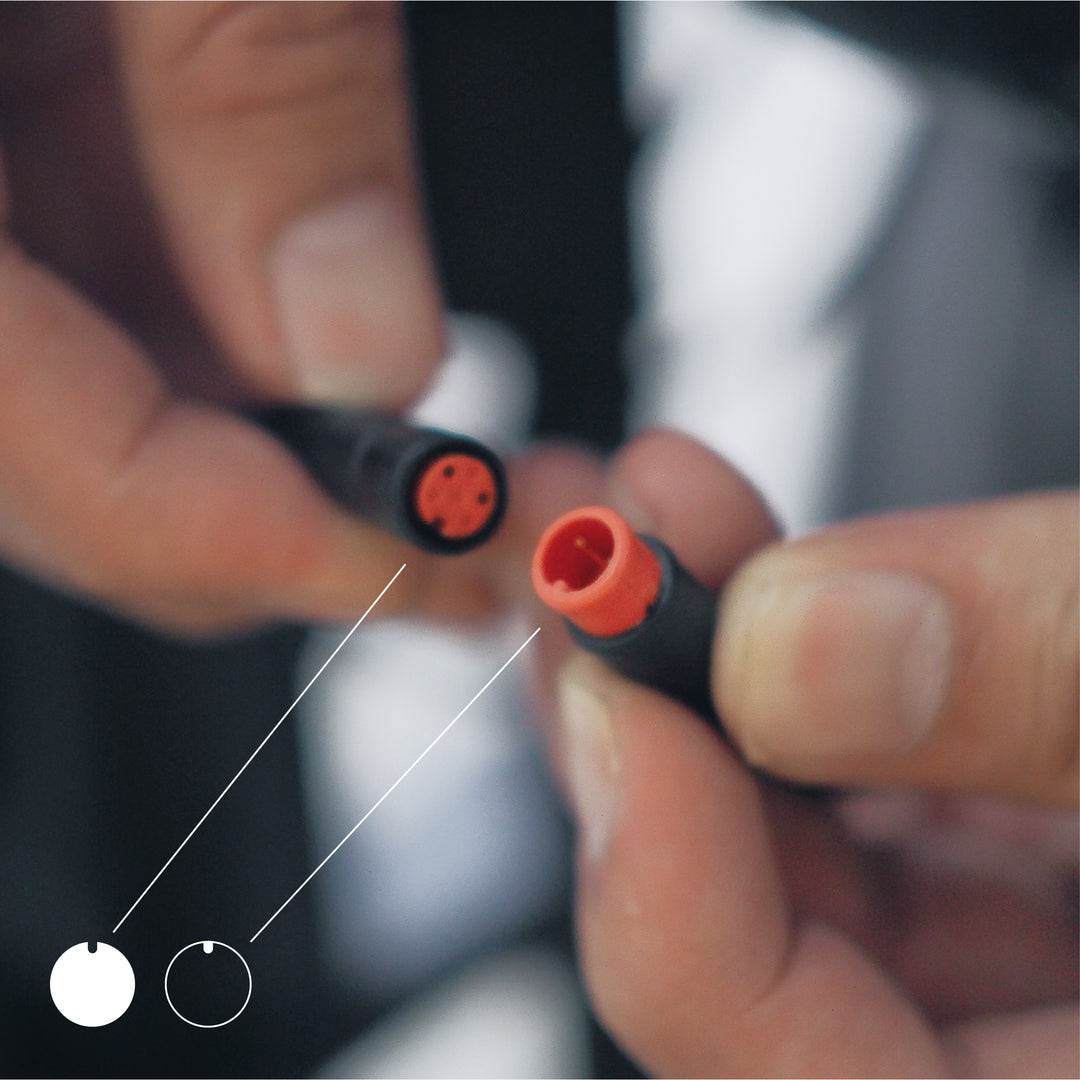

Once headlight is installed, connect the red higo plug to controller by aligning arrows on both ends and pushing into place. The headlight is ready for use.

7. Battery

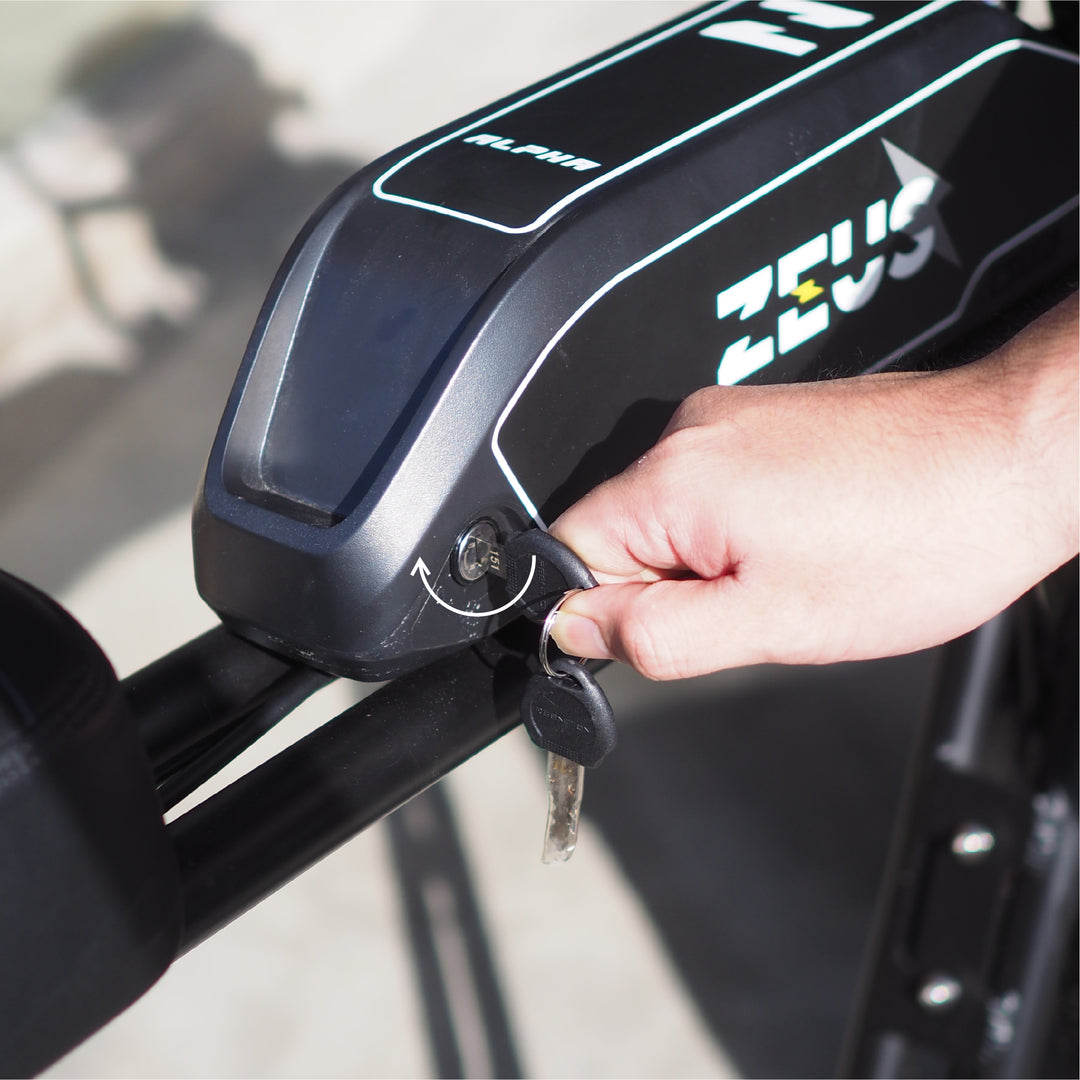

Slide battery into mount and push until it clicks.

Insert and turn key to lock in place.

(Make sure to lock the battery and remove the key before riding)

Power on the battery and enjoy your ride.
